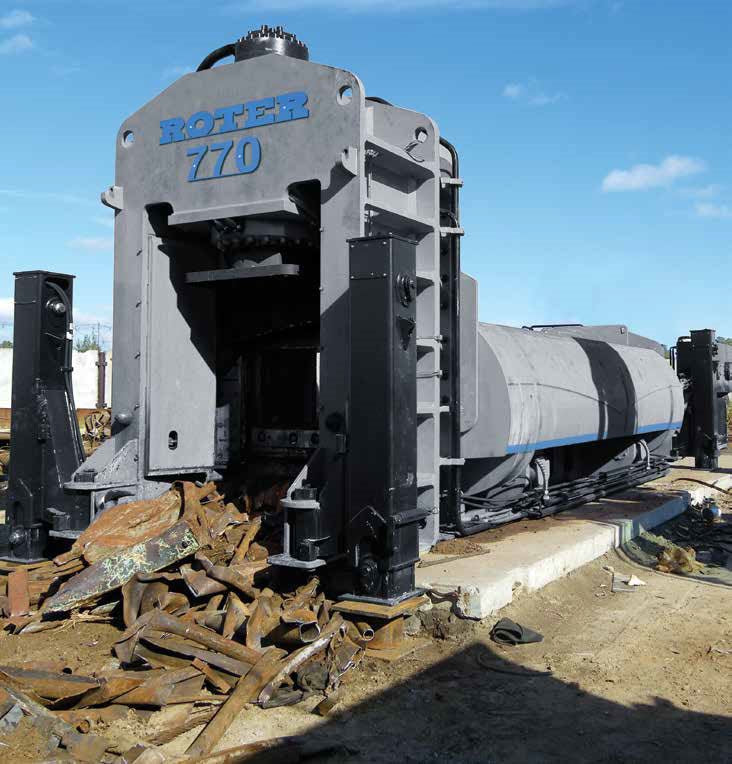

Roter Rx550/770/990
ROTER RECYCLING “RR series” shear/balers for scrap metal are the best solution to compact and shearing all types of steel and ferrous and non ferrous metals. They have a 550 tons cutting force for RR550.5 and RR550.6 models and 715 tons cutting force for RR715.6 model and are available fixed and semi-mobile version. They are easily suitable to any yard, in fact the machines can be configured with several options, according to the customer needs.
Download CatalogAsk a question
Got a question?
Enter your question below and we will get back to you as soon as possible.
Description
ROTER RECYCLING Rx550/770/990 shear/balers are equipped with a diesel motor and a remote control for an optimal performance of the machine from remote position. The 7” color Touch Screen panel allows the operator to control the parameters of the machine, for processing of scrap metal.
A self-diagnostic system guides the operator in finding any faults. ROTER RECYCLING shear/balers are equipped with auto shut-off security sequence which is activated in case of alarms or anomalies that may compromise the safety of the operator or of the machine. It also has available, an alarms history database, and a working time database for a better planning of the maintenance. All parts are easily reachable for quick and easy maintenance operations.
UNIQUE ADVANTAGES OF SHEAR SERIE “RX”
| Our machines are built for tough working conditions. |
| Very long life span. |
| Industrial, robust and flexible design. |
| Able to process a wide range of metals and steels. |
| Easy loading material. |
| Top quality components to ensure long-term profitability. |
| Fast and efficient after-sales service. |
| All spare parts available in stock. |
| This semi-mobile machine doesn’t need foundation. |
| The installation is very fast and the plant is ready to work in only few hours. |
| 100% developed trouble shooting assistance system. |
| Every component is easy accessible for maintenance. |
| Extremely customizable according to the production needs of the scrap yard. |
| The Programmable Logic Controller (PLC) is protected from power surges through a stabilized power supply in order to avoid sudden changes in voltage coming from the battery. |
| The machine is equipped with Safety Engine Auto Stop in case of malfunctions or alarm situations that could compromise the safety to the operator or the equipment. |
| The machine is equipped with an alarm auto diagnostic system and guided procedures which constantly monitor the state of the machine and allow the operator to maintain control of the machine functions and the active alarms. |
Specifications
| Technical Data | RX550.6 | RX770.6 | RX770.7 | RX990.7 | RX990.8 | |
| Shear force | 550 | 750 | 750 | 990 | 990 | tons |
| Hold-down force | 100 | 100 | 100 | 100 | 100 | tons |
| Box material | HARDOX 400/450 | HARDOX 400/450 | HARDOX 400/450 | HARDOX 400/450 | HARDOX 400/450 | |
| Box length | 6000 | 6000 | 7000 | 7000 | 8000 | mm. |
| Opened box width | 2450 | 2540 | 2540 | 2640 | 2640 | mm. |
| Cylinders per lid | 2 | 2 | 3 | 3 | 3 | |
| Lids force | 210 | 210 | 315 | 315 | 315 | tons |
| Main cylinder force | 155 | 155 | 155 | 155 | 155 | tons |
| Bale size | 800 x 600 | 800 x 600 | 800 x 600 | 900 x 600 | 900 x 600 | mm. |
| Oil circuit capacity | 1500 | 2500 | 2500 | 3000 | 3000 | Lt. |
| Diesel tank capacity | 250 | 250 | 250 | 400 | 400 | Lt. |
| Engine power | 225/168 | 250/186 | 250/186 | 276/205 | 276/205 | HP/KW |
| Shear lubrication | AUTOMATIC | AUTOMATIC | AUTOMATIC | AUTOMATIC | AUTOMATIC | |
| Hold down lubrication | AUTOMATIC | AUTOMATIC | AUTOMATIC | AUTOMATIC | AUTOMATIC | |
| Cuts per minute | 3,5 - 4 | 3,5 - 4 | 3,5 - 4 | 3,5 - 4 | 3,5 - 4 | |
| Min cutting length | 150 | 150 | 150 | 150 | 150 | mm |
| Working pressure | 280/320 | 280/320 | 280/320 | 280/320 | 280/320 | bar |
