407 - 16" McIntyre CAT Alligator Shear
Ask a question
Got a question?
Enter your question below and we will get back to you as soon as possible.
Description

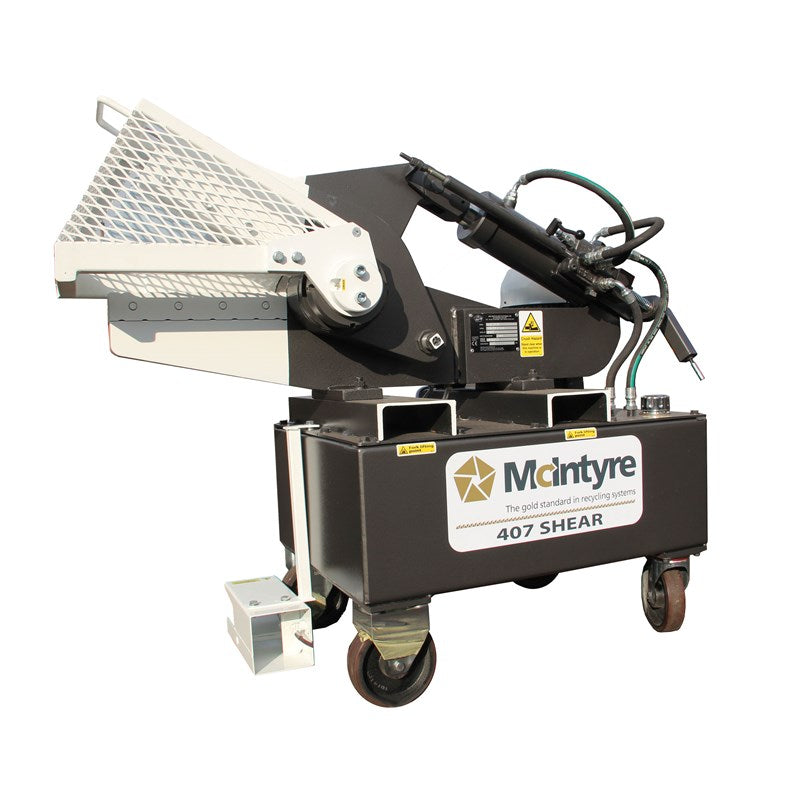

The McIntyre 407 alligator shear is a robust and powerful shear designed to be durable enough for the most difficult working environments, it is used extensively throughout the world for cropping both ferrous and none ferrous metals. The 407 can be moved on its own wheels or it has fork lifting slots in the body making it a truly versatile shear.

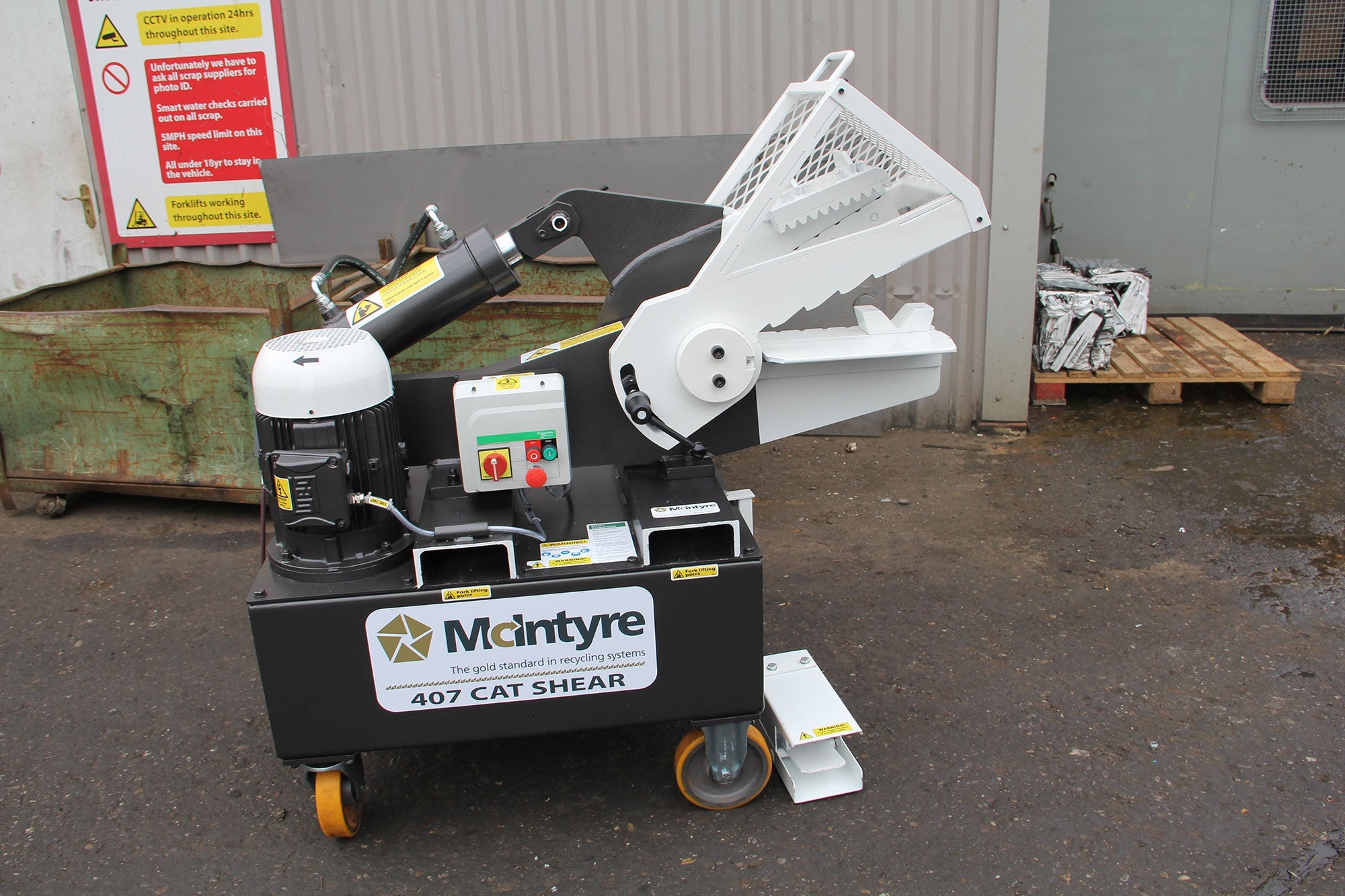

The 407 CAT Shear has been purpose-built for recovering valuable precious metals from catalytic converters. The catalytic converter is simply placed in the jaws and is controlled by a movable foot pedal. The pinched end of the converter is then re-opened on a side bracket allowing the contents to be poured out. This is a modification to the standard 407 that can be easily removed for standard shearing activities.
Technical Data
| Machine dimensions: | 62.5''x 28''x 53'' |
| Blade length: | 16'' |
| Tip to tip opening: | 8.8'' |
| Shearing height: | 36.8' |
| Weight with oil: | 1980 lbs |
| Oil capacity: | 44 Gallons |
| Noise level: | 75 dBA +/-3 |
| Cut control: | Single cut repeating |
| Standard electrics: | 3ph 480v |
| Power rating: | 10hp |
| Motor speed: | 1750rpm |
| Max system pressure: | 3100psi |
| Max shear force: | 90 Tons |
| Cut speed - fully open: | 11 Dry cuts per minute |
| Cut speed - 40% open: | 28 Dry cuts per minute |
| Cutting capacity: | mild steel 2.25'' round bar 1.75'' Square bar |
Whilst we make every effort to ensure that our information is correct, technical data is for guidance only and subject to change. If any dimension or performance indication is particularly important to you, please check it with us before ordering.
